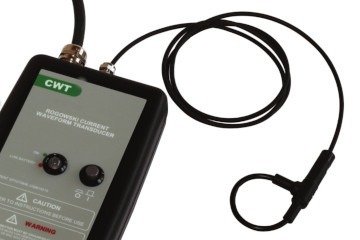

CWT MINI 50 HF

The CWTMini50HF is optimised for faster switching devices such as SiC and has a high frequency (-3dB) bandwidth of 50MHz with a 100mm coil at just 3.5mm thickness (2kV peak insultation).

As with CWTMiniHF range it combines an innovative screened Rogowski coil providing excellent immunity to interference from fast local dV/dt transients or large 50/60Hz voltages with excellent high frequency performance.

The CWT range is ideal for power electronic applications, such as monitoring semiconductor switching waveforms or for measurements in electrically noisy environments. The easy-to-use thin, flexible, clip-around coil accurately replicates fast switching current waveforms be they sinusoidal, quasi sinusoidal or pulsed.

Standards and Approvals

• CE marked
• Designed and Tested to EN 61326-1:2013
• Designed and Tested to EN 61010-1 Third Edition
• Patents Pending (granted patent JP 6438963)
